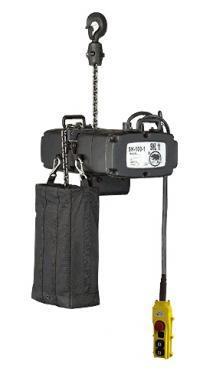

Concert Hoist Series

Concert Hoist Series

Concert Hoist Series

More Details


Overload Protection

  • A slip clutch prevents the damage due to overloading.



Motor and Brake (Optional function)

  • Cooling fins around motor permits 40% duty cycle.
  • Standard IP54 enclosure; motor winding with class F insulation and thermal protection.
  • Brake automatically engages in the event of a power failure.
  • Long life asbestos free brake material.



Magnetic Contactor

  • High performance non-fuse circuit breakers.
  • Rotatable electric bracket assembly for easy maintenance and inspection.



Limit Switch

  • Upper and lower electrical limit switch.
Specifications:

See more complete detail
Capacity (kg) Model Speed (m/min) Fall No. Load Chain (Dia x Pitch) (mm) Motor (kw x pole) Weight of hoist (kg) Dimension (mm)
A B C D F H I J M
250 SH-025-1 4.0 1 4 x 12 0.25 x 4 28 410 135 18 205 175 28 165 85 25
500 SH-050-1 4.0 1 6.3 x 19.1 0.4 x 4 42 520 156 23 297 221 33 185 105 30
1000 SH-100-1 4.0 1 7.1 x 20.2 0.75 x 4 54 650 170 23 275 240 33 205 135 30
2000 SH-200-1 4.0 2 7.1 x 20.2 1.5 x 2 62 700 170 27 275 240 39 170 170 30
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
