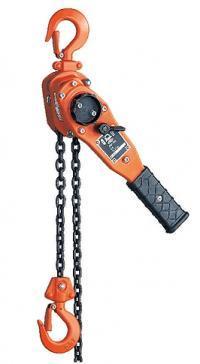

Lever Hoist

1. Steel formed cases

Both gear and hand chain wheel are protected by Hydraulic drew cases which is ideally shaped and rugged to be able to withstand external shocks

2. Bushing

Bushing finished by surface hardened treatment and polish procedure serves to increase the mechanical efficiency and reduce the hand chain pull force.

3. Load Chain

Applying grade 80 alloy chain specially calibrates for manual hoists and conforms to ISO and DIN standard.

4. Chain Stopper

Work as the lower limit to prevent over traveling during lowering the load.

5. Load Chain Guide

Ensure the load chain proper fitting the load sheave during operation and protect the load sheave from wet and dirt.

6. Hand Wheel

Allow an efficient chain length adjustment by switching the direction switch to “free” mold and rotating the hand wheel.

7. Brake Mechanism

No matter how heavy the load, the brake works instantly when operation stopped; the lining material is non-asbestos with long life time.

8. Duel Ratchet Pawls

Dual ratchet pawls are applied for extra safety purpose. In case on ratchet pawl fails, the other still maintains its mechanical brake function.

9. Upper & Lower Hooks

Hooks with ho forged and heat treatment allow to be swiveled 360° and are equipped with safety latch to ensure proper hooking the load.

Specifications:

See more complete detail

Model	Capacity (ton)	Lift (m)	Load Chain		Headroom H (mm)	Length of operating handle N (mm)	Pull on lever to lift full load (kgf)	Test load (ton)	N.W. (kg)	Dimensions (mm)
Model	Capacity (ton)	Lift (m)	Dia x pitch (mm)	No. of falls	Headroom H (mm)	Length of operating handle N (mm)	Pull on lever to lift full load (kgf)	Test load (ton)	N.W. (kg)	A	B	C	D	E	F	G
YL-030	0.3	1	4.0x12	1	235	155	30	0.38	2.1	29	48	23	72	23	31	43
YL-050	0.5	1.5	5.0x15	1	275	265	35	0.63	3.9	32	62	26	88	28	35	51
YL-080	0.8	1.5	5.6x17	1	290	265	25	1	6.1	41	80	55	100	28	35	51
YL-100	1.0	1.5	6.3x19	1	325	265	30	1.25	7.0	41	80	55	100	36	43	53
YL-160	1.6	1.5	7.1x21	1	370	400	30	2	10.7	47	103	65	99	38	48	62
YL-300 /320	3.0 /3.2	1.5	9.0x27	1	470	416	36	4	16.2	55	120	81	104	50	60	69
YL-600	6.0	1.5	9.0x27	2	620	416	38	7.5	31	62	164	81	104	50	63	172
YL-900	9.0	1.5	9.0x27	3	830	416	39	11.25	55	126	219	81	104	65	85	166

Order Information:

Minimum Order: Negotiable
OEM/ODM Product, Branded Product, Buyer's Label Offered
