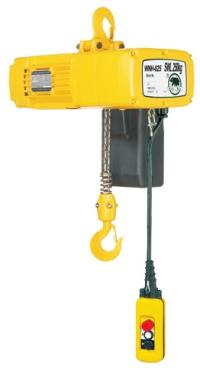

Product

model	S.W.L. (kg)		Lift (m)		Dimension (mm)															Load Chain			Hoisting					E.D. Rating (%)40	Load Chain Fall No.	N.W. / G.W. (kg)
					A		B		C		D		E		F		G	H		Dia X pitch			Speed (m/min)		Motor Power (kw) (Pole)
					A		B		C		D		E		F		G	H		Dia X pitch			50 Hz	60 Hz	50 Hz		60 Hz
WNH-012	125		80		364		182		182		130		260		108		152	400		4.0 x 12.0			20	20	0.6 x 2P		0.6 x 2P	40	1	58/60
WNH-025	250		80		468		221		247		156		366		186		180	485		6.3 x 19.1			20	20	1.6 x 2P		1.6 x 2P	40	1	111/113
WNH-050	500		80		488		240		248		170		398		188		210	520		7.1x 20.2			20	20	2.5 x 2P		2.5 x 2P	40	1	145/148
WNH-100	1000		80		488		240		248		170		398		188		210	520		7.1x 20.2			11	11	2.5 x 2P		2.5 x 2P	40	1	145/146
WNH-200	2000		80		488		240		248		170		398		188		210	520		10.0 x 30.0			5.5	5.5	2.5 x 2P		2.5 x 2P	40	1	233/236
model	Dimension (mm)																								Speed (m/min)			Motor Power (kw) (Pole)	N.W. (kg)	Min radius of carve (m)
	A	B		C		D		E		F		G		H		L			J		N	K			Speed (m/min)
	A	B		C		D		E		F		G		H		L			J		N	K			50 Hz	60 Hz
WNH-012	382	111.5		324		180		75-125		202		125.5		120		200			51.5		39	7/8-9UNC (22.2)			20	24		0.12 x 2P	45	1.3
WNH-025	382	111.5		324		180		75-125		204		125.5		95.5		200			51.5		39	7/8-9UNC (22.2)			20	24		0.12 x 2P	45	1.3
WNH-500	382	111.5		324		180		75-125		202		125.5		120		200			51.5		39	7/8-9UNC (22.2)			20	24		0.18 x 2P	45	1.3
WNH-100	382	111.5		324		180		75-125		202		125.5		120		200			51.5		39	7/8-9UNC (22.2)			20	24		0.18 x 2P	45	1.3
WNH-200	392	125.5		357		183		100-150		221		159.0		120		230			60		36	1-8 UNC (22.2)			20	24		0.37 x 2P	50	1.7
